Save more $$$ and effort with Ozi-Shim Pre-cut Laser alignment shims.
Ozishim from Alignment Systems Australia manufactures pre-cut shims for laser coupling alignments.....

For our international friends Ozishim is pronounced Aussie-Shim......

 www.ozishim.com  shims@bigpond.com             Aussie Made since 1995

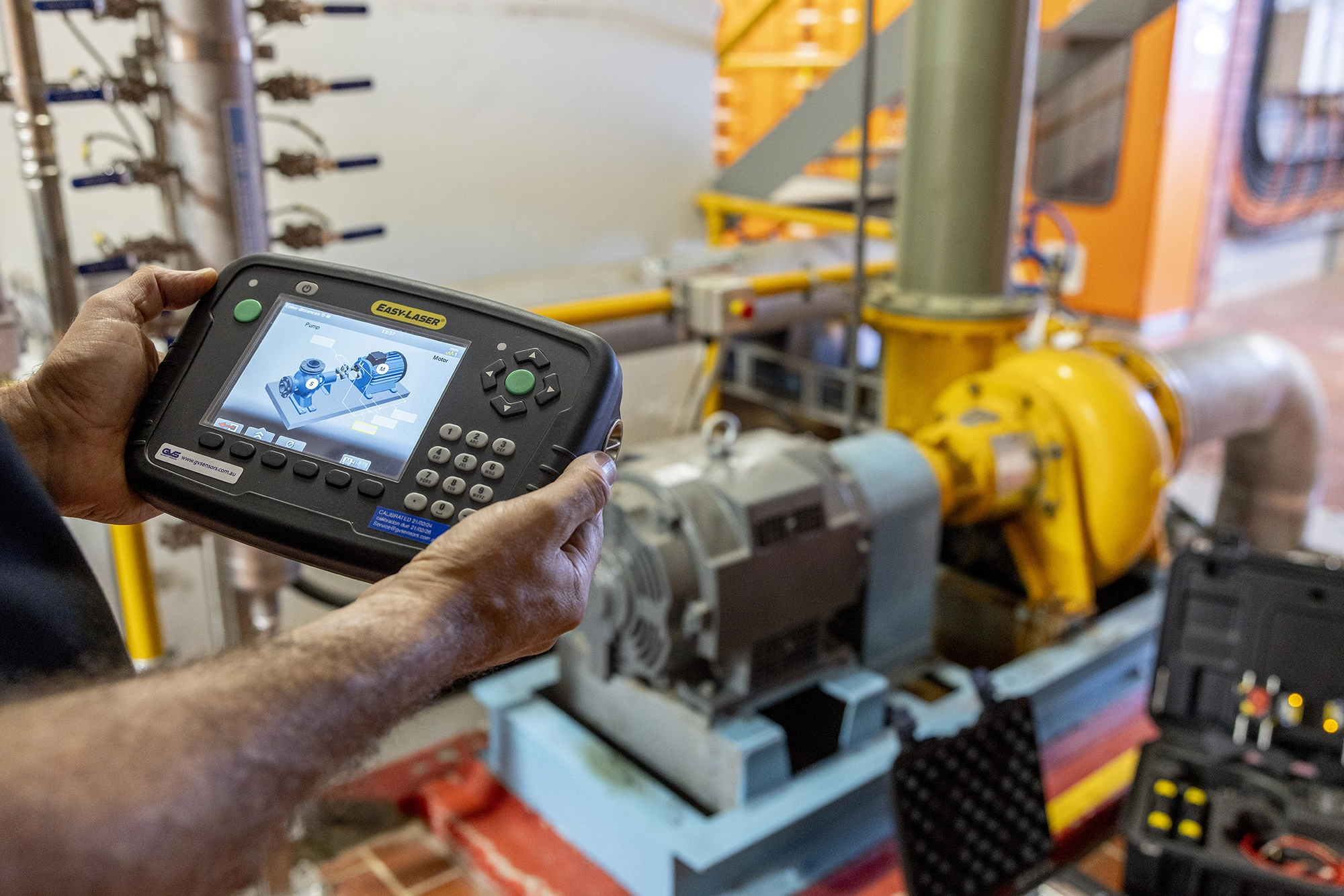

            Laser Shaft Alignment service since 1995

                                  New Product.....  Vibration Analyser at Vibration Pen prices!!!



a4900_v3_info.pdf

4910Lubri_info_en.pdf











         Ozi-Shim Price List  (10 shims per Pack)                            Laser and Water jet cutting just doesn't do it!

  Same or Next Day Shipping.....   > $750,000.00 of OziShim stocked on our shelves!

    10 Shims per packet



         Ozishim Easy Peel Packet                               260 shims Boxed

Ozishim - Australian Made Pre-cut Shim

bulletHighest Quality Grade 304L 316L Stainless Steel Shim Stock
bulletClearly Marked Thicknesses in Metric and Imperial
bulletNo Burrs or Sharp Edges
bulletHigher Slots – No ‘Bolt Pull’
bullet8 Standard sizes – 13 Thicknesses
bullet(4mm and 6mm thickness now available)
bulletCustom Shims, Washers, Double Slot Shims,
bulletGaskets, Arbour Shims – Any shape

Ozi-Lign V-belt aligner

Clever, slim, simple design - Simple to use

simply must have!

                           Ozishim Dimensions (mm)

    Certified Stainless Steel Shim Stock (304L - 316L)

 mm
A
B
C

Slot Height

A size
50
50
16
39
B size
75
75
22
55
C size
100
100
32
77
D size
125
125
45
95
E size
200
200
55
147
F size
150
150
55
111





Can you do this with your current shim?





Click on the shim...

                           25% OFF

10 Shims per packet                      OziLign V-Belt alignment tool

                              25% Discount



Click the Picture for Specs                         OziLign V-Belt Aligner

                                                    With Adjustable Targets



Ozishim Pre-cut thickness

Shims are LASER MARKED both  Imperial / Metric....

0.025 / 0.001", 0.05 /  0.002", 0.075 /  0.003", 0.10 /  0.004", 0.125 / 0.005",

0.20 /  0.008", 0.25 /  0.010", 0.40 /  0.015", 0.50 /  0.020", 0.70 /   0.027",

1.00 / 0.039", 2.00 /  0.079", 3.00 / 0.118", 4.00 / 0.157", 6.00 / 0.236"



Why Ozi-Shim is #1 in Australia



Custom Shims



Laser marking service

      Precut shim Box Combinations

     A, AB, ABC, B, BC, C, CD, D, E, F.





Or you can always use a bucket as a carry case.

bulletStrong, Purge valve for air travel, O'ring sealed for underground mines etc...
bulletSpacious and tough....
bulletLOWEST PRICES AUSTRALIA WIDE!
bulletLets face it....These Pre-cut shim Boxes are slick!

Made in Australia since 1995         Hit Counter

 Same or Next Day Shipping......



www.ozishim.com  shims@bigpond.com


                                     Shimpacks                                                                Shim Box faceplates marked Metric & Imperial
